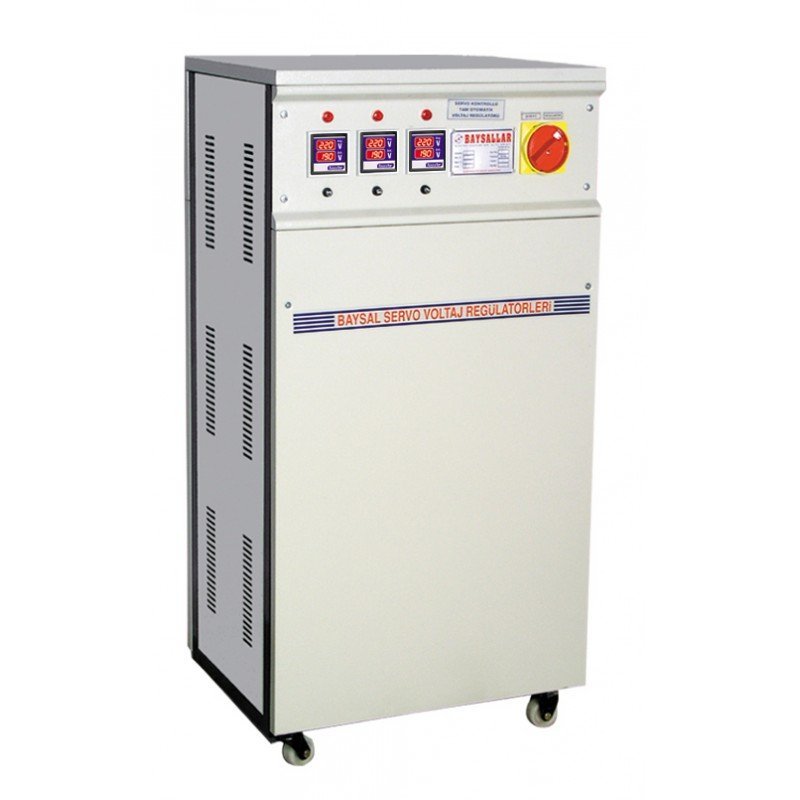

45 kVA Triphase Servo Regulator

Original price was: KSh700,000.Current price is: KSh606,000. Exc. VAT

Features

Parameter	Specification
Input Voltage Correction Range	For 275 – 450 V AC 3 phase; / 210 – 415 V AC for 3 phase (Optional)
Output Voltage	380 V AC RMS ± 1% or 2% (3 phases)
Operating Frequency	50 Hz. ± 5%
Correction (Control) Speed	~80 Volts/Second
Display and Buttons	True RMS digital voltmeter, microprocessor
Working Technique	Microprocessor controlled fully automatic servo control
Total Efficiency	> 95% (At full load)
Monitoring Measured Values	In 3 separate windows; Possibility to read input and output voltage
Overload	10 seconds at 200% load
Recovery Time	~900 msec. (Changing between 160 V AC – 250 V AC)
Output High Limit Cut Setting (OPS)	240 V, 245 V, 255 V and 265 V can be selected via DIP SWITCH
Output Low Limit Cut Setting (OPS)	170 V, 180 V, 190 V and 200 V can be selected via DIP SWITCH
Exit Delay Time (Optional)	It can be selected as 1 sec, 2.5 sec, 5 sec and 10 sec via DIP SWITCH
Operating Temperature	-10°C / +50°C
Protection Class	IP 20 / IP 25
Relative Humidity	90% up to DIN (40040)
Working Height	2000 meters
Acoustic Level	Less than 50 dB
Mechanical By-Pass	Manually operated “Mains – Voltage regulator” selector POWER SWITCH
Mains Input Connection	4*………..Antigron cable according to the power of the regulator
Regulator Output Connection	4*………..Antigron cable according to the power of the regulator
Weight	(Weight information not provided)
Output Tolerance Setting	1.5%, 2.5%, 3.5%, and 5% can be selected via DIP SWITCH
