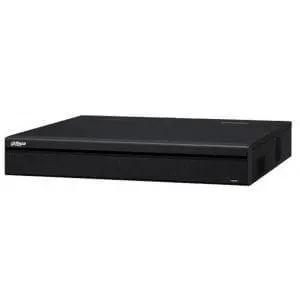

Dahua XVR5232AN-S2 32 Channel Penta-brid 1080P Digital Video Recorder

Name: Dahua XVR5232AN-S2 32 Channel Penta-brid 1080P Digital Video Recorder - DnK Digital solutions
Price: 35000 KES
Availability: InStock

Original price was: KSh47,500.Current price is: KSh35,000. Exc. VAT

> Embedded processor
> H.264+/H.264 dual-stream video compression
> Support HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 32 channels IP camera inputs; Max 128Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Support 2 SATA HDD, up to 16TB

Continue Shopping Category: Dahua NVR (Network Video Recorders)

Description

Dahua XVR5232AN-S2 32 Channel Penta-brid 1080P Digital Video Recorder Specs and Price in Kenya

Product Description

Dahua XVR5232AN-S2 32 Channel Penta-brid 1080P Digital Video Recorder:

Dahua XVR5232AN-S2 32 Channel Penta-brid 1080P Digital Video Recorder Specs

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

32 Channel, BNC

HDCVI Camera

4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

4MP, 1080P@25/30, 720P@25/30fps

TVI Camera

4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

32 Channel, each channel up to 5MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.264+/H.264

Resolution

4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate

Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)Sub steram: D1/CIF/QCIF(1~15fps)

Bit Rate

1Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Display

Interface

1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

1/4/8/9/16/25/36

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

2 SATA Port, up to 8TB capacity

eSATA

N/A

Auxiliary Interface

USB

1 USB 2.0 , 1 USB 3.0

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

DC12V/5A

Power Consumption

<20W (Without HDD)

Construction

Dimensions

1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)

Net Weight

2.35kg (5.2 lb) (without HDD)

Gross Weight

3.2kg (7.05lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1

Buy Dahua XVR5232AN-S2 32 Channel from Rapidtech Digital Solutions with fast delivery across the country and in-store pickup in Nairobi. We also offer free deliveries within CBD for selected items
