Delta Ultron HPH, with its 100kVA/kW UPS GES104HH330135
Original price was: KSh4,500,000.KSh3,700,000Current price is: KSh3,700,000. Exc. VAT
- Model: GES104HH330135
- Power Rating: 100 kVA / 100 kW
- Phase: 3-Phase
- Topology: Double Conversion
- Input Voltage:
- Nominal Voltage: 380/400/415 Vac, 3P4W+PE
- Voltage Range: 332~477 Vac (full load)
- Frequency: 40~70 Hz
- Total Harmonic Distortion (THDi): < 3%
- Power Factor: > 0.99 (full load)

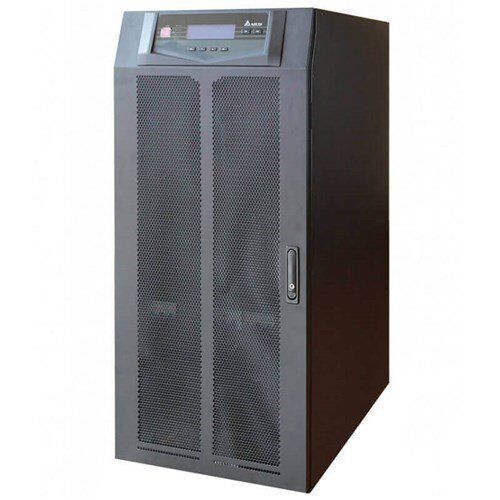

Delta Ultron HPH, with its 100kVA/kW UPS GES104HH330135
The Delta Ultron HPH, with its 100kVA/kW capacity, is a cutting-edge 3-phase double conversion online UPS. Model GES104HH330135 is designed to provide uninterrupted power supply and protection to critical applications, ensuring stability and reliability in demanding environments.
Product Features
- High-Capacity Power: With a 100kVA/kW rating, this UPS is capable of handling the power needs of critical systems.
- Double Conversion Technology: Guarantees clean, stable power output without switchover time, ensuring uninterrupted operation.
- Advanced Protection: Safeguards critical equipment from power anomalies, extending their lifespan.
- Energy Efficiency: Operates with high efficiency, reducing energy costs and environmental impact.
- LCD Display: An intuitive interface for real-time monitoring and control.
- Smart Communication: Supports remote monitoring and management for added convenience.
- Scalability: Allows for parallel operation to meet growing power demands.
- Eco Mode: Enhances energy savings during periods of low power demand.
Product Specifications
| Specifications | GES104HH330135 |
|---|---|
| Model | GES104HH330135 |
| Power Rating | 100 kVA / 100 kW |
| Phase | 3-Phase |
| Topology | Double Conversion |
| Input | |
| Nominal Voltage | 380/400/415 Vac, 3P4W+PE |
| Voltage Range | 332~477 Vac (full load) |
| Frequency | 40~70 Hz |
| THDi (Total Harmonic Distortion) | < 3 % |
| Power Factor | > 0.99 (full load) |
| Short Circuit Withstand Rating | 22 kA (HPH-100K) |
| Output | |
| Voltage | 380/400/415 Vac, 3P4W+PE |
| Voltage Regulation | ± 1 % |
| Frequency | 50/60 ± 0.05 Hz |
| THDv (Total Harmonic Distortion) | ≤ 2 % (Linear Load) |
| Power Factor | 1.0 |
| Overload Capability | ≤ 125 %: 10 mins; 126~150 %: 1 min; > 150 %: 1 sec |
| Current Crest Ratio | 3:1 |
| Efficiency | |
| Online Mode | > 96 % |
| ECO Mode | Up to 99 % |
| Battery | |
| Battery Type | VRLA/ Lithium-ion |
| Nominal Voltage | ±240 Vdc |
| Quantity | 32~46 pcs(1) |
| Charge Current | 20 A |
| Max. Charger Current with Optional Charger Board | 40 A (HPH-100K) |
| Communication Interfaces | |
| Display | LCD Screen with LED Indicators |
| Port | Smart slot x1, Mini slot x1, Parallel port x2, RS-232 x1, Charger detection port x1, Input dry contact x2, Output dry contact x6, USB x1, REPO port x1, External battery temperature sensing port x2 |
| Emergency Power Off | Yes |
| Physical | |
| Dimensions (W x D x H) | 520 x 800 x 1760 mm |
| Net Weight | 312 kg |
| Environment | |
| Operating Temperature | 0 to 40 °C(2) |
| Humidity | 5~95 % (non-condensing) |
| Audible Noise | < 65 dB |
| Altitude | 0~1,000 m (without derating) |
| Storage Temperature | -20 to +50 °C |
| Ingress Protection | IP20 |
| Conformance | |
| Safety | CE, IEC |
| EMC | IEC 62040-2 |
| Performance | IEC 62040-3 |
| Sustainability | RoHS, REACH |
Visit the Delta store Kenya for a more extensive variety of Delta UPS at incredibly affordable pricing. In order to give you peace of mind with every transaction, we are one of the reputable Delta dealers in Kenya and offer limited manufacturer warranty for selected Delta products. For the most affordable Delta supplier offers, visit our website right now to learn about our inventory and get in
