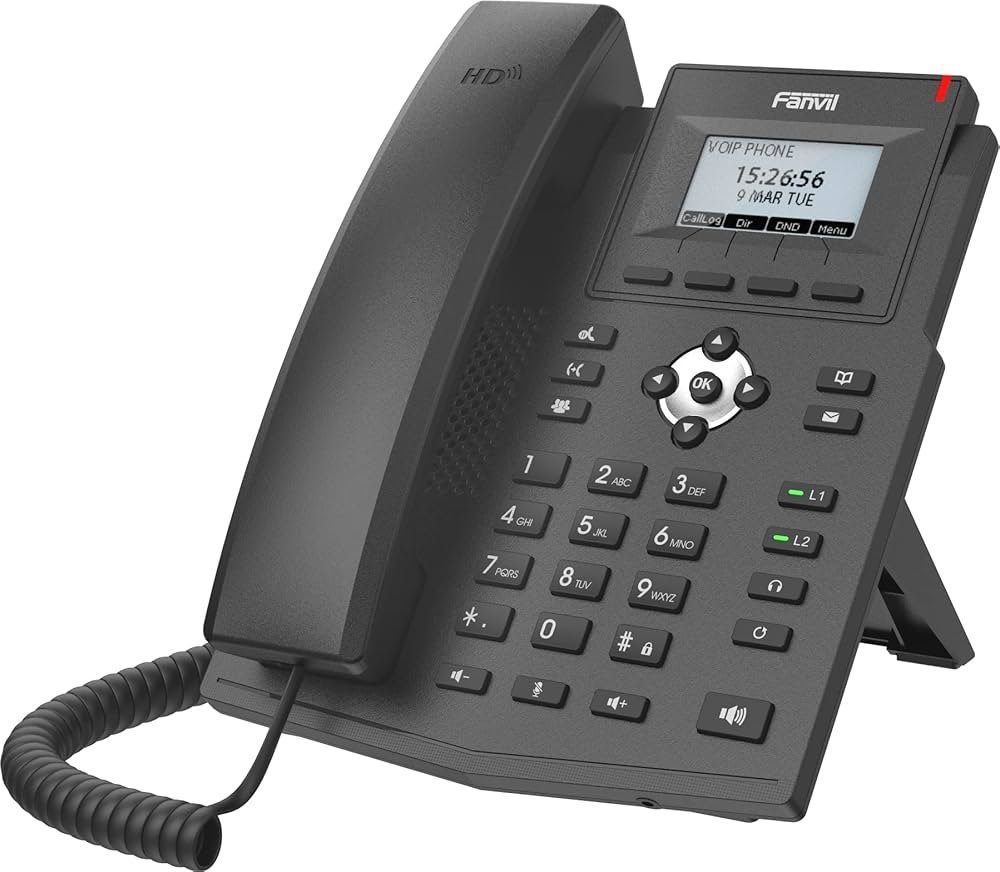

Fanvil X301W Entry-Level IP Phone

The Fanvil X301W Kenya is a cost-effective Wi-Fi IP phone with multi-function. It features a 2.3-inch 128×48 pixel dot-matrix display, supporting 2 SIP lines and local 6-party conferencing to render a user-friendly experience. Fanvil X301W Kenya has rich functions such as HD audio and built-in 2.4GHz & 5GHz Wi-Fi, providing an efficient and high-quality business communication experience for enterprises.

Product Features

• 3-inch 128×48 pixel dot-matrix display
• Supports audio codec G.722 and Opus, HD audio on speakerphone and handset
• Supports 6-party local conference
• Support EHS wireless headset
• Built-in 2.4GHz & 5GHz Wi-Fi, realizing more flexible connectivity
• Two installation methods of desktop stand and wall mountable

Product Specifications

Generic

• 2 SIP Lines
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5GHz Wi-Fi
• Dot-matrix display screen
• Handset / Hands-free / Headset mode
• Desktop Stand / Wall mountable (optional)
• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
  Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 600 entries)
• Blocked List/Allowed List
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Wi-Fi
  • 4GHz, 802.11 b/g/n
  • 5GHz, 802.11 a/n/ac
• Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward(Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (with server)
• 6-way Conference
• Hot Line
• Hot desking

Audio

• HD Voice Microphone/Speaker
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec : G.711a/u, G.723.1,G.726,G.729A/B, iLBC
• Wideband Codec: G.722, Opus

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Wi-Fi Encryption: WPA /WPA2-PSK /802.X EAP
• Network Access Control: 802.1x
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• 0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPV6
• LLDP
• PPPoE
• 1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
  PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD: 128×48 pixel graphical LCD with backlight
• Keypad: 33 keys, including
• 4 Soft-keys
• 9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook/MWI/Headset/Redial/Hands-free)
• 4 Navigation keys
• 1 OK key
• 12 Standard Phone Digits keys
• 3 Volume Control keys (Up/Down/Mute (Microphone))
• Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 5M CAT.5E Ethernet Cable x1
• Desktop Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2 : Handset x1, Headset x1
• RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
• Security Slot x1
• DC Power Input: 5V/0.6A
• Power Consumption(Adapter) : 0.8~1.29W
• Power Consumption(PoE) : 1.25~1.86W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation :
  • Desktop Stand
  • Wall mountable (optional )
• Color: Black
• W/CTN : 9.05kg(X301), 8.55kg(X301P)
• W/CTN : 9.76kg(X301), 9.26kg(X301P)
• Device Dimensions :
  • Desktop Stand (45°) : 169×201.1×177.4 mm
  • Desktop Stand (50°) : 169×191.9×185.8 mm
  • Wall mountable: 169×120.1×213.7 mm
• Gift Box Dimensions: 250x220x55mm
• Outer CTN Dimensions : 460x300x270mm(10 PCS)

Check out our Fanvil shop in Kenya for more high-quality Fanvil IP Phones at the best prices, as well as a wide range of alternatives to match your requirements. As an established Fanvil dealer in Kenya, we guarantee that all products include a limited manufacturer warranty for your peace of mind. Browse our website to explore our extensive inventory and take advantage of our competitive prices.
