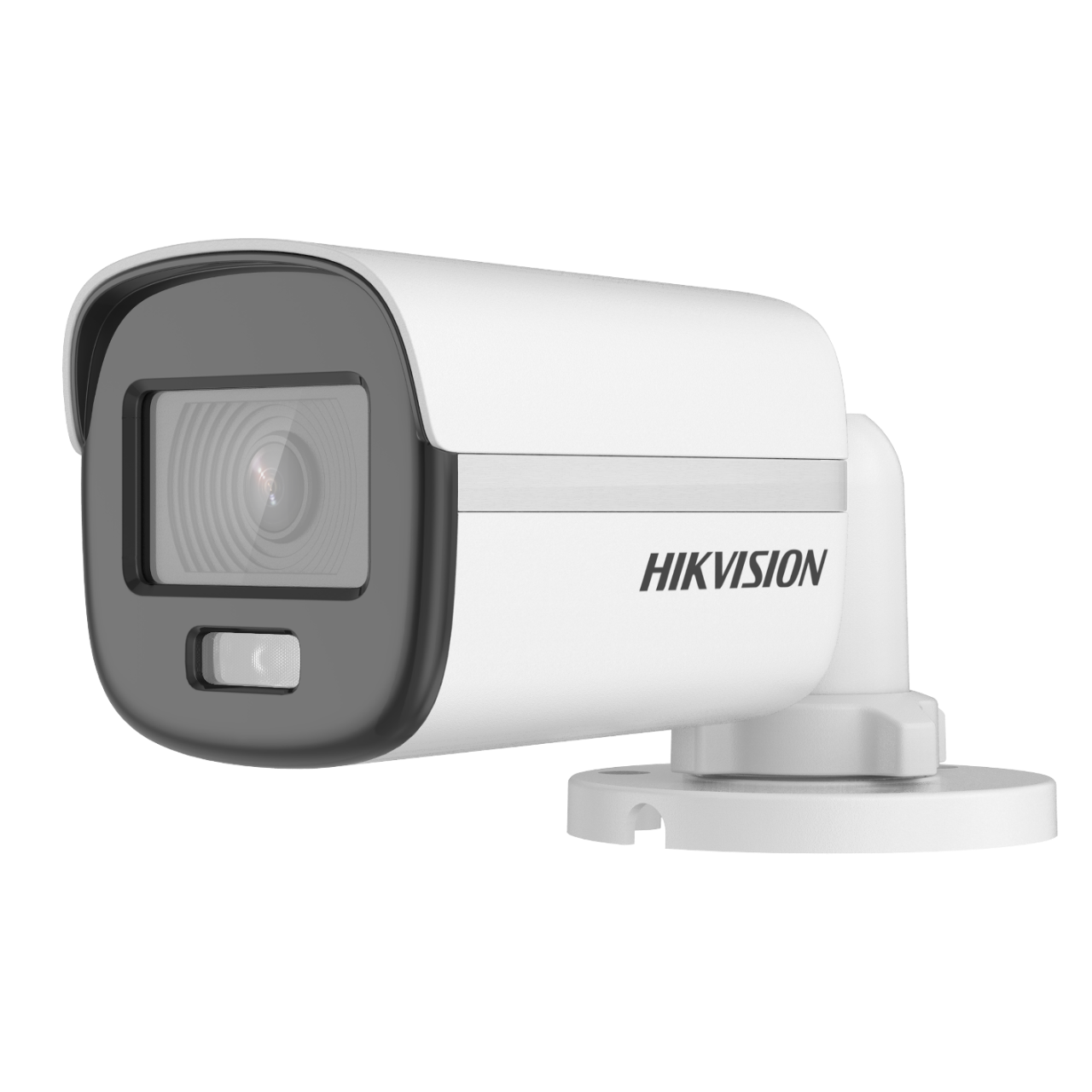

Hikvision DS-2CE10DF0T-PF 2MP ColorVu Bullet Camera

Product Features

• High-quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 3.6 mm lens
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

DS-2CE10DF0T-PF Specifications

Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Resolution1920 (H) × 1080 (V)
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, 3.6 mm, 6 mm Fixed Lens
• Field of View

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

  3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°


• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeDWDR; BLC;HLC; Global
• Noise Reduction3D DNR/2D DNR
• LanguageEnglish
• FunctionSharpness;Mirror;Brightness;Smart Light;Anti-Banding

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption Max. 2.4 W
• Protection LevelIP67
• MaterialPlastic
• White Light RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimension161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
• Approx. 229 g (0.50 lb)
