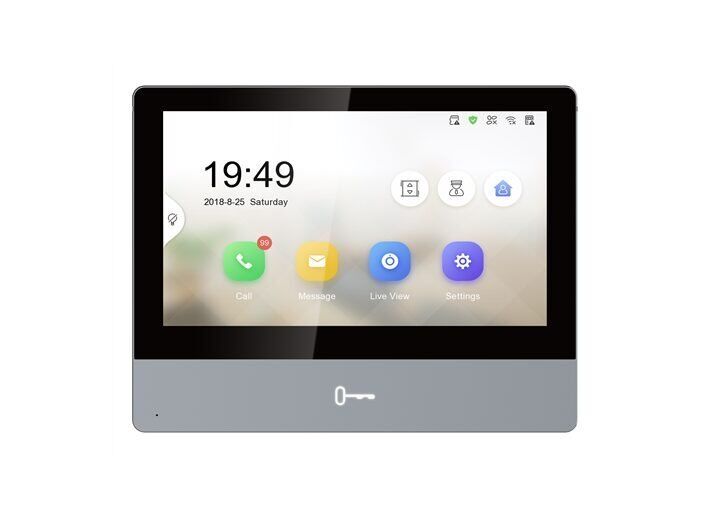

Hikvision DS-KH8350-WTE1 7-inch Touch-Screen Indoor

Product Features

• IP indoor station
• Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
• Wi-Fi (for W version), standard PoE/ 12 VDC
• TF card, max 32G, for capture while video calling
• 8-ch alarm input, 2 alarm output, 1×485
• Remote unlocking via the client or the APP
• Views live videos of door stations and external cameras

Product Specifications

• System Parameters
• Operating SystemEmbedded Linux operation system
• ROM32 MB
• RAM128 MB
• CPUEmbedded processor

• Display Parameters
• Screen Size7-inch
• Operation MethodCapacitive touch screen, physical button
• TypeColorful IPS LCD
• Resolution1024 × 600

• Video Parameters
• LensNot supported.
• Resolution/
• FOV/
• WDRNot supported.
• Video Compression Standard/
• Focal Length/

• Audio Parameters
• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• Event Capacity200
• Notice Capacity16
• Linked Indoor Extensions Capacity5
• Linked Doorphone Capacity8

• Network Parameters
• Communication ProtocolTCP/IP, SIP, RTSP
• Wired Network10/100 Mbps self-adaptive
• Wi-Fi standard-Fi 802.11 b/g/n
• Bluetooth Version/
• 3G/4G StandardNot supported.
• Zigbee/

• Device Interfaces
• Alarm Input8-ch alarm inputs
• Network Interface1 RJ-45 10/100 Mbps self-adaptive
• TAMPER/
• RS-485Support
• USB0
• TF CarMax to 32 G, SD 2.0 or lower version
• Alarm Output2
• Power Interface1
• General
• Power Supply

  IEEE802.3af, standard PoE

  12 VDC/1 A

• Power Consumption≤ 7 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Button1
• InstallationSurface mounting
• Indicator0

• With package: 899 g

  Without package: 355 g

• Protective Level/
• Dimensions180 mm × 140 mm × 22.4 mm (7.09″ × 5.51″ × 0.88″)
• Battery/
• Application EnvironmentIndoor
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
