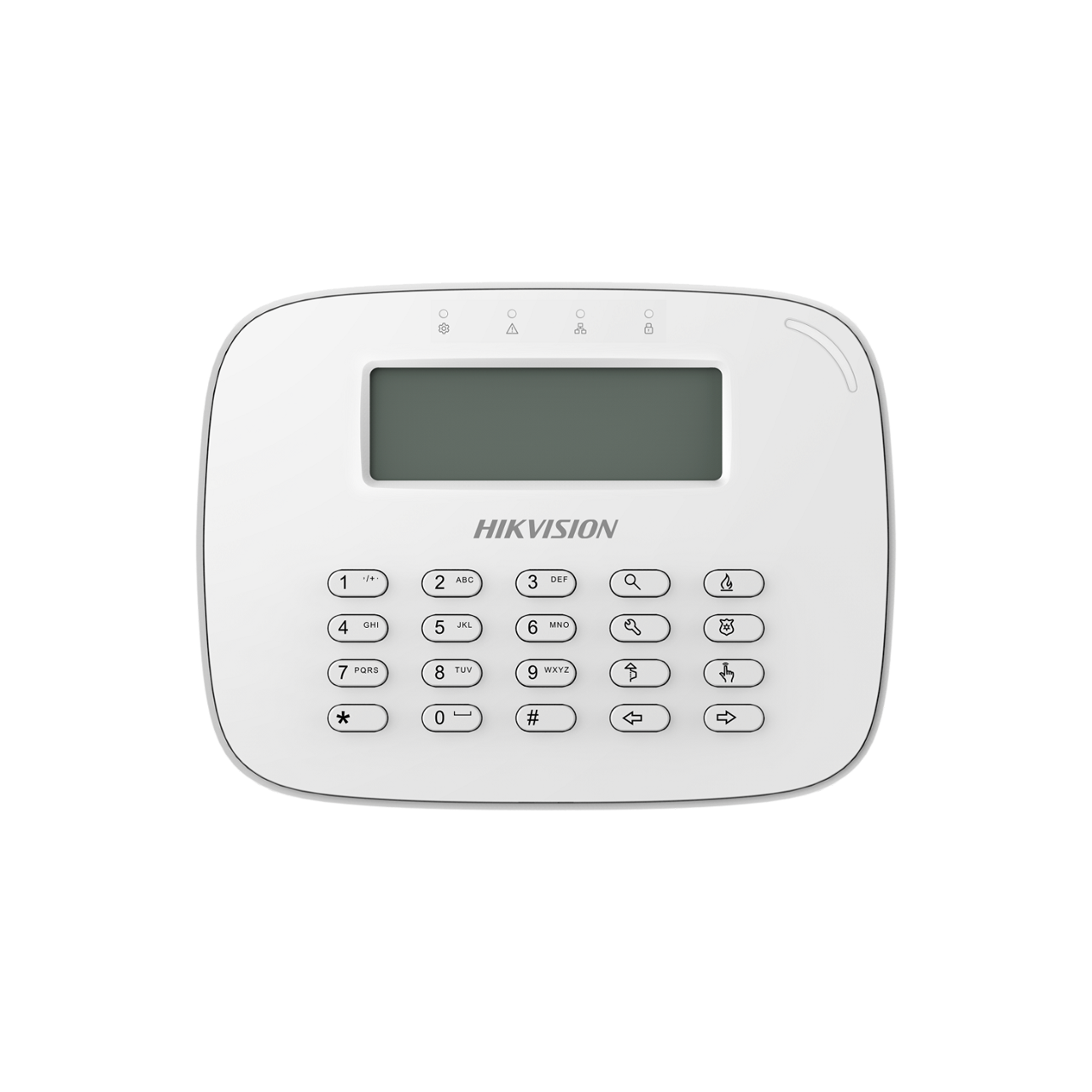

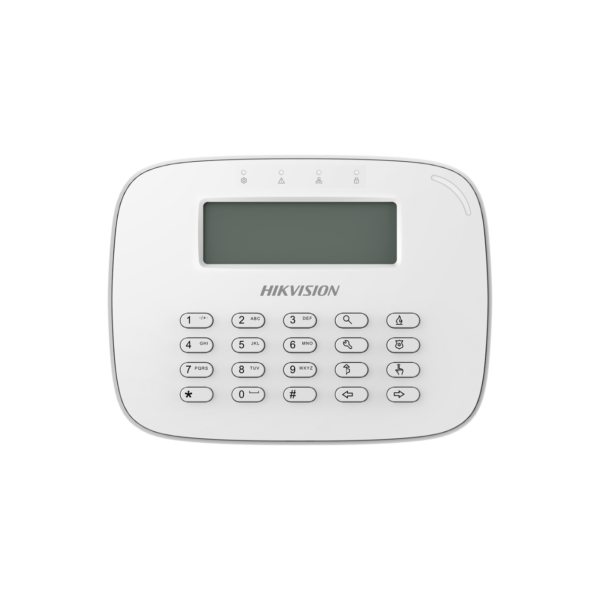

Hikvision DS-PK-LRT(868MHz) Expanders and Peripherals

Product Features

• 80 × 25 mm LCD screen display
• Supports arming and disarming by swiping cards
• Supports remote arming and disarming via keyfob (compatible with 868MHz DS-PKFE-5 keyfob)
• Supports one-touch arm
• Supports displaying zone name on the LCD screen
• Displays real-time system status on LED indicator and LCD screen
• Tamper proof

Product Specifications

Software features

• Tamper-ProofCover and wall

Hardware features

• Numeric key12 (0 1 2 3 4 5 6 7 8 9 * #)
• Function key8 Function Keys (Project, Query, Panic, Bypass, Fire, One-push to arm, Scroll up, Scroll down)
• IndicatorFault( Orange), Network( Green), Alarm( Red), Armed/Disarmed( Blue), Set( Red/Green)
• RF transmission
• RF Frequency868MHz

Electrical characteristics

• Power supplyDC 12V
• Power Consumption1.8 W

Display

• Display screen 80 × 25 mm LCD screen display

General

• Operation temperature– 10 °C to + 55 °C (14 °F to 131 °F)
• Operation humidity10%～90%
• Dimension(WxHxD)164.13mm x 124.11mm x 30.96mm
• 272g

Device management

• KeyfobSupported
• Tag readerSupported
