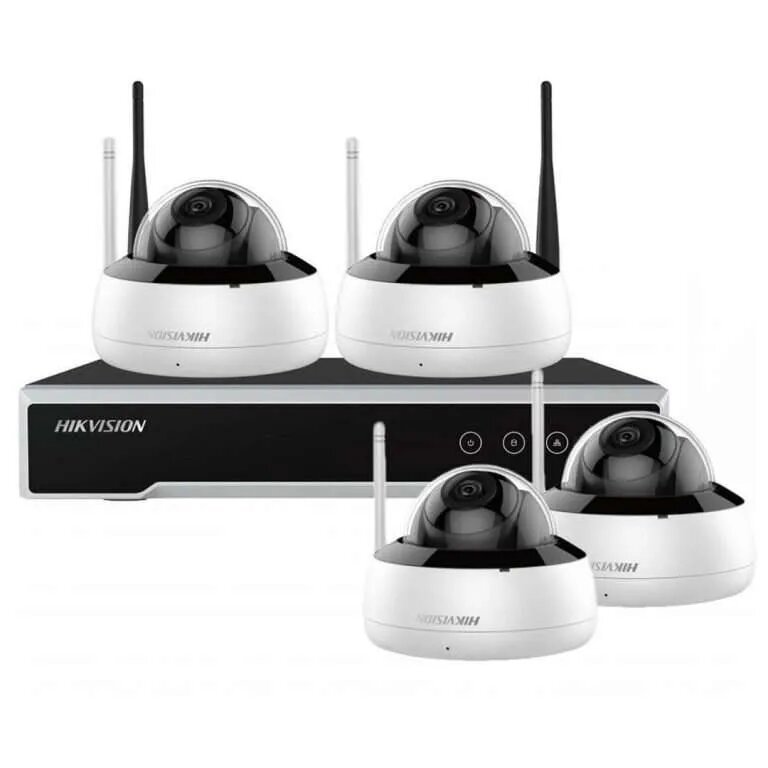

Hikvision NK44W1H-1T(WD) 4 Channel 4MP Wi-Fi Kit

Original price was: KSh65,000.Current price is: KSh58,000. Exc. VAT

Product Specifications

VIDEO/AUDIO INPUT
IP video input:		4-ch

NETWORK
Outgoing bandwidth:		40Mbps
Incoming bandwidth:		50Mbps

VIDEO/AUDIO OUTPUT
HDMI/VGA output:		1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz

DECODING
Decoding format:		H.265+/H.265/ H.264+/H.264
Capability:		1-ch @ 4 MP / 2-ch @ 1080p

EXTERNAL INTERFACE
Network Interface:		1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface
USB Interface:		2, USB2.0

WIFI CAMERA
Image Sensor:		1/3″ Progressive Scan CMOS
Min. Illumination:		Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Yes
Lens:		2.8/4 mm 2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 117° 4 mm, horizontal field of view: 75°, vertical FOV: 41°, diagonal FOV: 88°
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 355°, tilt: 0° to 75°
Day& Night:		IR Cut Filter
Wide Dynamic Range:		Digital WDR

COMPRESSION STANDARD
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:		Baseline Profile/Main Profile/High Profile
Video bit rate:		32Kbps~8Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Max. Image Resolution:		2560 × 1440
Sub Stream:		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate:		50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Image Enhancement:		BLC/3D DNR
Image Settings:		Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
ROI:		Support 1 fixed region for main stream and sub-stream
Day/Night Switch:		Auto/Scheduled/Day/Night

NETWORK
Network Storage:		Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
General Function:		One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

INTERFACE
Communication Interface:		1 RJ45 10M/100M self-adaptive Ethernet port
Audio:		1 Built-in mic, mono sound
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

AUDIO
Environment Noise Filtering:		Support
Audio Sampling Rate:		8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

WI-FI SPECIFICATION (-W)
Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
Frequency Range:		2.412 GHz – 2.472 GHz
Channel Bandwidth:		20/40MHz Support
Security:		64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:		50m(depend on environment)

GENERAL
Operation Condition:		-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
IR Range:		Up to 30 m
Power Supply:		12 VDC ± 25%, PoE (802.3at, class 4), Φ 5.5 mm coaxial power plug
Power Consumption:		12 VDC, 0.5 A, Max: 6W
Weather Proof:		IP66
Dimensions:		Camera: Φ 121.4 mm × 92.2 mm (Φ 4.8″ × 3.6″) With package: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight:		Camera: 467g (1 lb.) With package: 725g (1.6 lb.)
