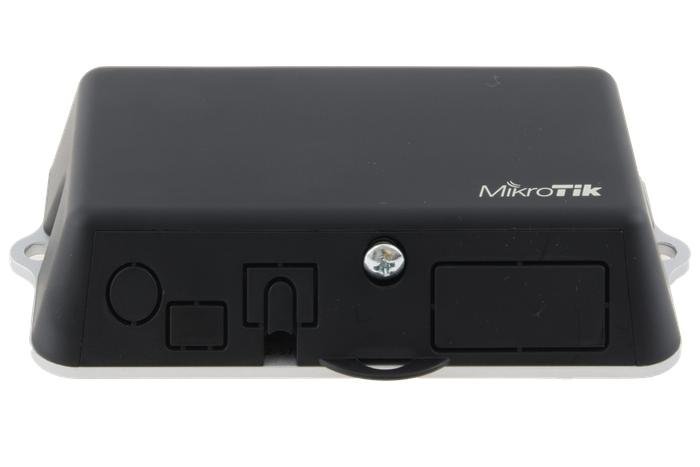

MikroTik LtAP mini LTE kit | Wireless AP w/ International LTE modem, two SIM slots, and GPS Specs and Price in Kenya

Product Description

MikroTik LtAP mini LTE kit | Wireless AP w/ International LTE modem, two SIM slots, and GPS:

• The LtAP mini LTE kit is a small weatherproof wireless access point with a built-in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands
• Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device.
• The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.
• LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains
• The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage.

MikroTik LtAP mini LTE kit | Wireless AP w/ International LTE modem, two SIM slots, and GPS Specs

Specifications

Details
Product code	RBLtAP-2HnD&R11e-LTE
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Availability	Order Online

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage	12-30 V
Automotive input Voltage	12-27 V
Max power consumption	24 W
Max power consumption without attachments	12 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-30 V

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz)

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9382
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of SIM slots	3 Modem (Mini-SIM)
MiniPCI-e slots	2
Serial console port	RS232
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
GNSS standards	GPS

Certification & Approvals

Details
Certification	CE, FCC, IC, E-MARK, EAC, ROHS
IP	IP54

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	25	-100
11MBit/s	25	-94
6MBit/s	26	-96
54MBit/s	23	-78
MCS0	26	-96
MCS7	22	-73

Buy MikroTik Accessories online from Rapidtech Digital Solutions with fast delivery across the country and in-store pickup in Nairobi. We also offer free deliveries within CBD for selected items.
