Sale!

Sopto Standalone 16 PON EPON OLT

Original price was: KSh210,000.Current price is: KSh190,000. Exc. VAT

16 PON ports in 1U pizza-box EPON OLT
1 USB interface
2 uplink 10Gbps SFP slots
4 uplink GE optical SFP ports
4 uplink GE RJ45 copper ports
Double 220VAC or -48VDC redundancy power supply

Out of stock

Continue Shopping Category: EPON OLT (Optical Line Terminal)

Description

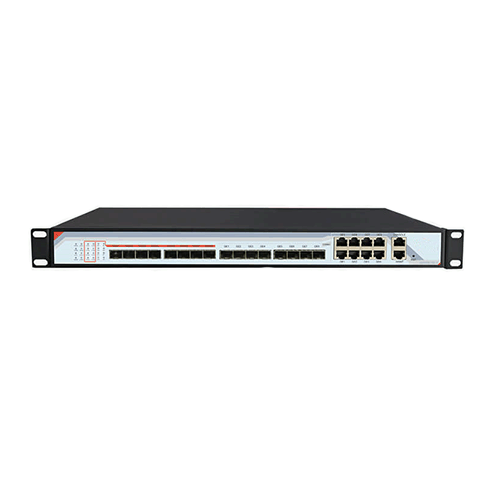

Sopto Standalone 16 PON EPON OLT

SOPTO’s 16 PON port pizza-box EPON OLT provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 16 EPON ports for downstream. It can support 1024 ONUs under a 1:64 splitter ratio.

Product Features

16 PON ports in 1U pizza box EPON OLT
1 USB interface
2 uplink 10Gbps SFP slots
4 uplink GE optical SFP ports
4 uplink GE RJ45 copper ports
Double 220VAC or -48VDC redundancy power supply

Specifications
Size	440350mm44mm(LWH)
Weight	5.74kg
Backplane Bandwidth	88G
Power Consumption	70W
Power supply	220VAC	AC: 90V～240V，47/63Hz
Power supply	-48DC	DC:-36V～-72V
Working environment	Working temperature	0～50℃
	Storage temperature	-40～85℃Relative
	Relative humidity	5～90% (Non-condensing)
Management Mode	SNMP, Telnet, CLI management mode.
Management Ports	1*100BASE－TX outbound port; 1CONSOLE port
USB Port	QTY	1
USB Port	Connector Type	TYPE-C
Uplink Port	QTY	10
	Copper	10/100/1000M auto-negotiable, RJ45:4pcs
	Optical interface	4 GE
	10Gb uplink interface	2*10Gb
PON Port	Quantity	16
	Physical interface	SFP slot
	Connector Type	1000BASE-PX20+
	Max splitting ratio	1:64
PON Port attribute	Transmission distance	20KM
	Port rate	Symmetrical 1.25Gbps
	Wavelength	1490nm TX,1310nm RX
	Interface type	SC/PC
	Fiber type	9/125μm SMF (Single Mode Fiber)
	TX Power	+2.5～+7dBm
	Rx Sensitivity	-27dBm
	Saturation power	-6dBm
EPON Function	Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid the broadcast storm; Support various LLID configurations and single LLID configurations.Different users and different services could provide different QoS by means of different LLID channels. Support power-off alarm function,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain a stable system Support dynamic distance calculation on EMS online Support RSTP, IGMP Proxy
