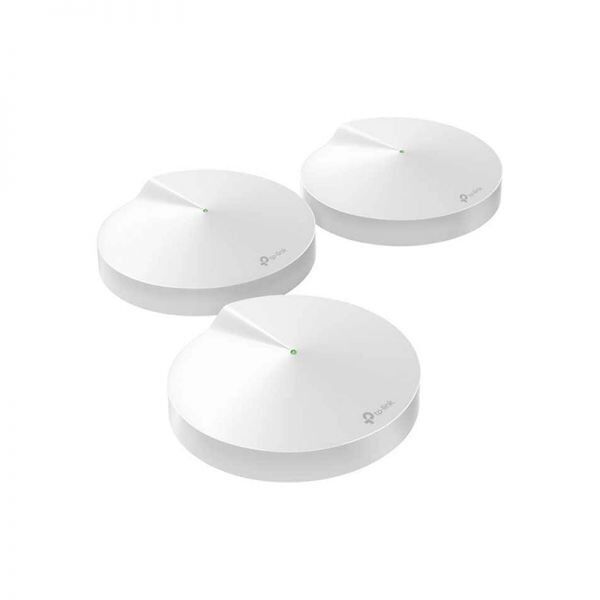

TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System (3 Pack) – TL-DECO M5

Product Features

• Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
• With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.
• A Deco M5 three-pack delivers Wi-Fi to an area of up to 5500 square feet, while a Deco M5 two-pack delivers up to 3800 square feet. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
• Deco M5 provides fast and stable connections with speeds of up to 1267Mbps and works with any internet service provider (ISP) and modem.
• Deco can handle traffic from even the busiest of networks, providing lag-free connections for over 100 devices.
• TP-Link HomeCareTM provides a suite of personalized and secure features, including Parental Controls, built-in Antivirus, and Quality of Service (QoS).
• Setup is easier than ever with the Deco app there to walk you through every step.

Product Specifications

WIRELESS
Standards	Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds	AC1300 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n)
WiFi Range	3-5 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul works together to link Deco units to provide seamless coverage 4× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	Medium Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
Working Modes	Router Mode Access Point Mode

HARDWARE
Processor	Qualcomm 717 MHz Quad-core CPU
Ethernet Ports	2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing
Buttons	Reset Button

SECURITY
WiFi Encryption	WPA-Personal WPA2-Personal
Network Security	SPI Firewall Access ControlHomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeCare™
Parental Controls	HomeCare™ Parental Controls Custom Profiles Content Filtering URL FIltering Time Limit Time Schedule (Bed Time) Log Insight Usage Monitor Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeCare™ QoS QoS by Device QoS by Application
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

PHYSICAL
Dimensions (W×D×H)	4.7 × 4.7 × 1.5 in (120 × 120 × 38 mm)
Package Contents	Deco M5 (3-pack) 3 Deco M5 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation GuideDeco M5 (2-pack) 2 Deco M5 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation GuideDeco M5 (1-pack) 1 Deco M5 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide

OTHERS
System Requirements	Android 4.4 or later iOS 9.0 or later
Certifications	CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm
