Mikrotik RB951UI-2HND Wireless Router

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

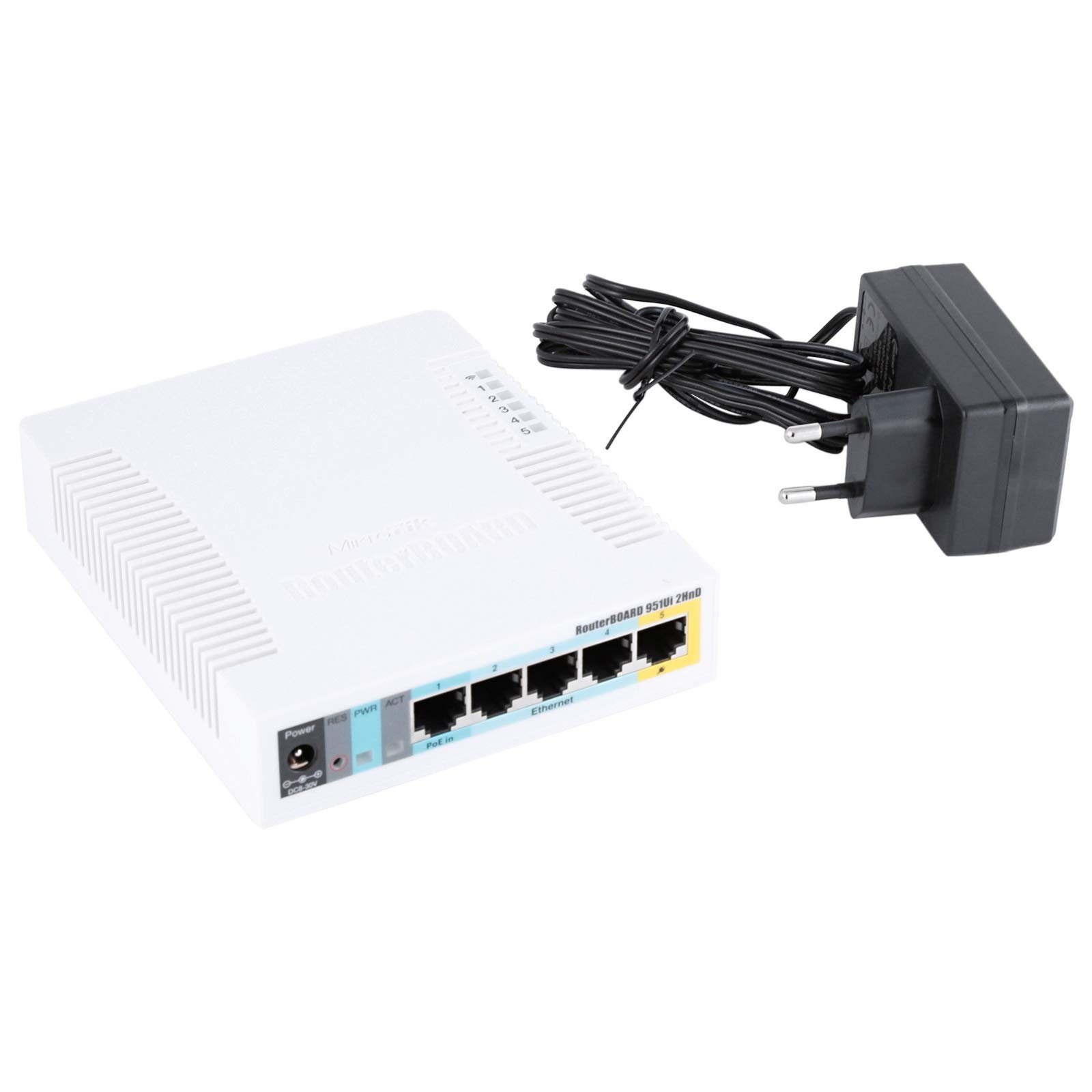

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

Mikrotik RB951Ui-2HnD Specifications

DETAILS
Product code	RB951Ui-2HnD
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	113x138x29mm
License level	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-20C +50C
Suggested price	$59.95

Powering

DETAILS
Max Power consumption	Up to 7W
PoE in	Passive PoE
PoE out	Passive PoE
PoE in input Voltage	9-30 V
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	9-30 V

Wireless

DETAILS
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9344

Ethernet

DETAILS
10/100 Ethernet ports	5

Peripherals

DETAILS
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Wireless specifications

2.4 GHZ	TRANSMIT (DBM)	RECEIVE SENSITIVITY
6MBit/s	30	-96
54MBit/s	25	-80
MCS0	30	-96
MCS7	23	-78
